- Place of Origin: CN; GUI
- Opening Stroke: 370
- Clamping Force: 288
- Condition: New
- Style: Horizontal
- Type: Injection Blow Molding
- Injection Rate: 111
- After-sales Service Provided: Overseas service center available
- Injection Weight: 650
- Automatic: Yes
- Plastic Type: Nylon
| Technical Parameters | Unit | K288F | |||||||
| Theoretical Injection Volume | cm3 | 692 | |||||||
| Practical Injection Weight(PS) | g(ps) | 650 | |||||||
| Oz | 23 | ||||||||
| Screw Diameter | mm | 60 | |||||||
| Injection Pressure | Mpa | 135 | |||||||
| Injection speed | mm/s | 111 | |||||||
| Draw Ratio of Screw | L/D | 17:1 | |||||||
| Screw Stroke | mm | 245 | |||||||
| Screw Speed | r/min | 200 | |||||||
| Mould Clamping Force | KN | 2880 | |||||||
| Opening Stroke | mm | 370 | |||||||
| Mould Dimension | mm*mm | 835*960 | |||||||
| Distance between Tie Bars | mm*mm | 580*580 | |||||||
| Maximum Spacing of Mould | mm | 820 | |||||||
| Mould Thickness (Min.-Max.) | mm | 210-450 | |||||||
| Ejection Stroke | mm | 100 | |||||||
| Ejection Force | KN | 77 | |||||||
| The Number of Thimbles | 8+1 | ||||||||
| Hydraulic System Pressure | Mpa | 17.5 | |||||||
| Pump Motor | kw | 22 | |||||||
| Heating Capacity | kw | 10 | |||||||
| Temperature Control Area | 5 | ||||||||
| Tank Capacity | L | 462 | |||||||
| (L×W×H) |
| 5.3×1.3×2.2 | |||||||
| Machine Weight | kg | 9200 | |||||||
Advantages :
1.Design according the feature of cable ties mould, opening stroke is short, reduce the shot time.
2.Rectangle platen, more adaptable for cable ties mould.
3.Special screw and feeding tube for Nylon, melt quickly, and feeding tube have air vent and water vent to make sure the quality of the product.
4.Increased Oil pump and motor, makes the injection speed more high than normal injection machine.

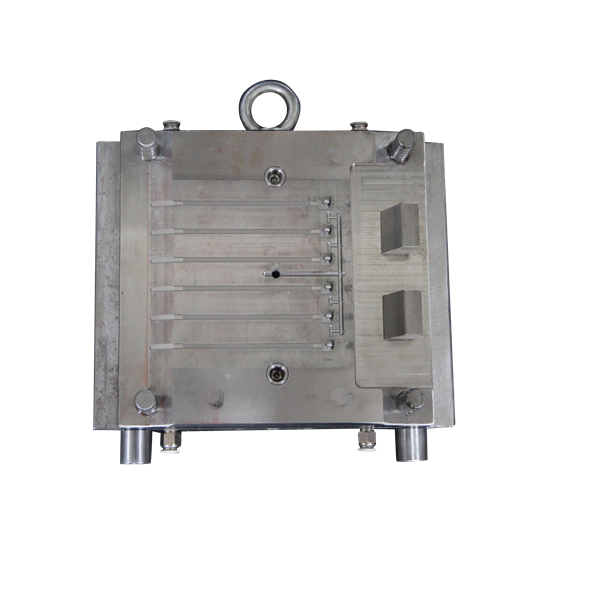

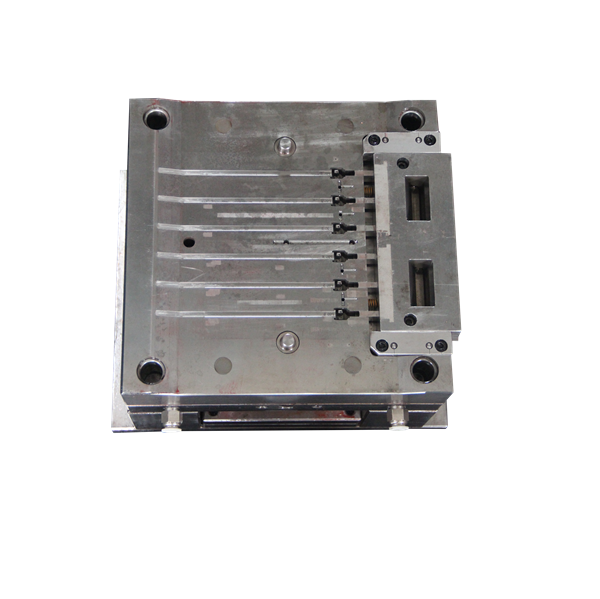

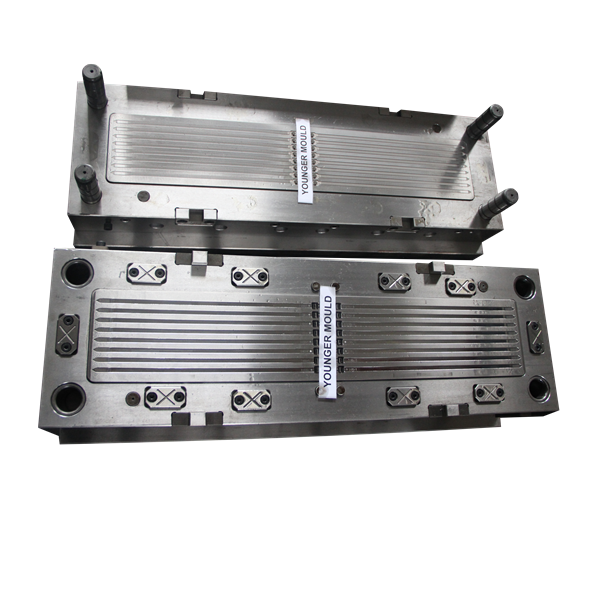

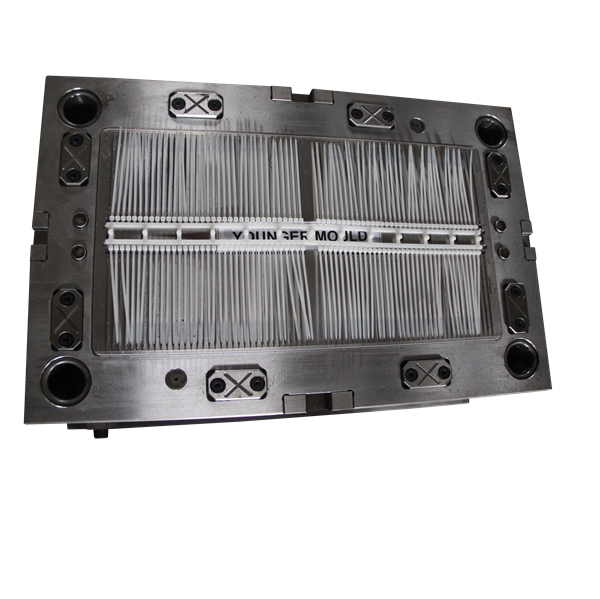

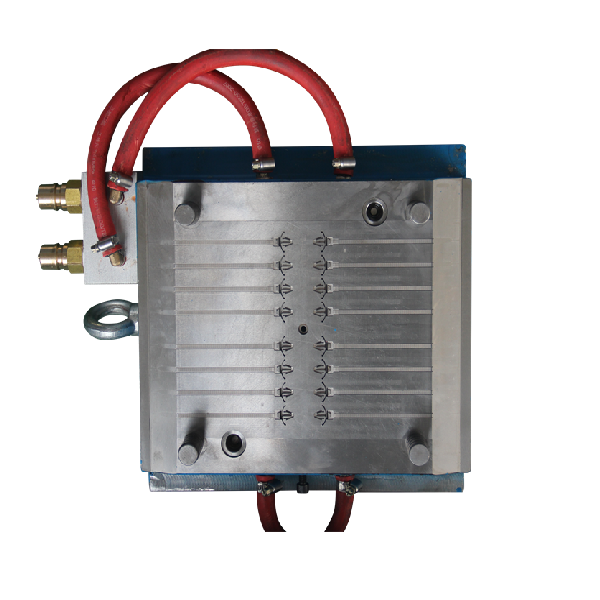

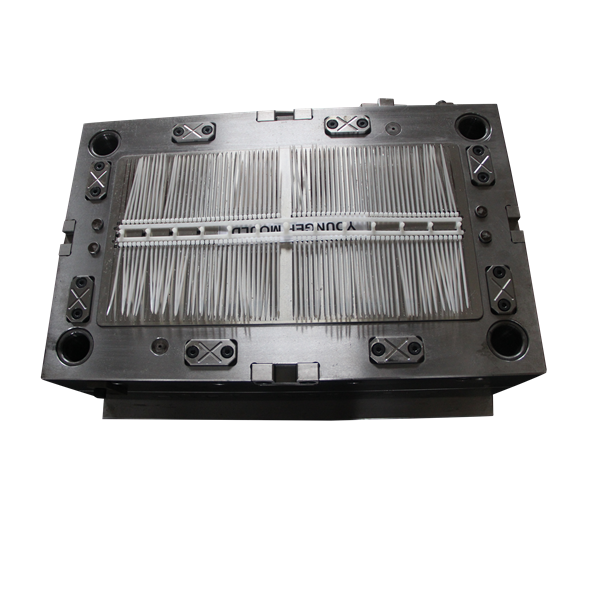

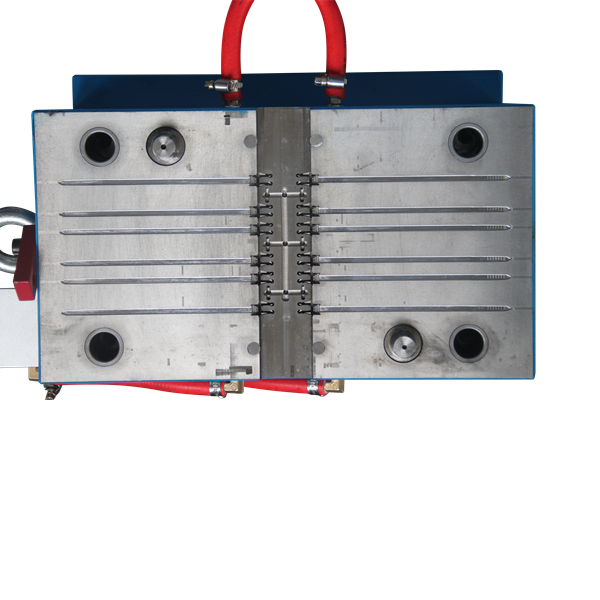

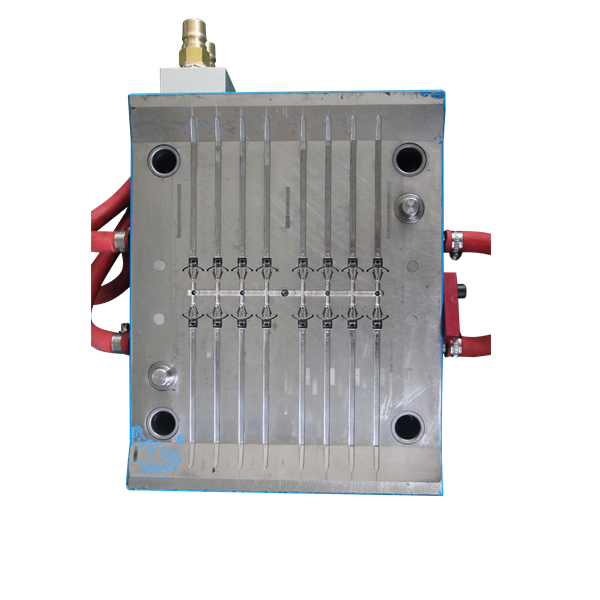

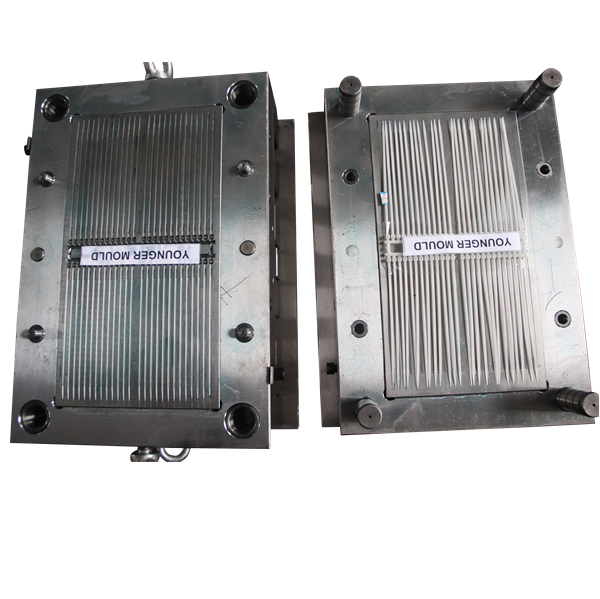

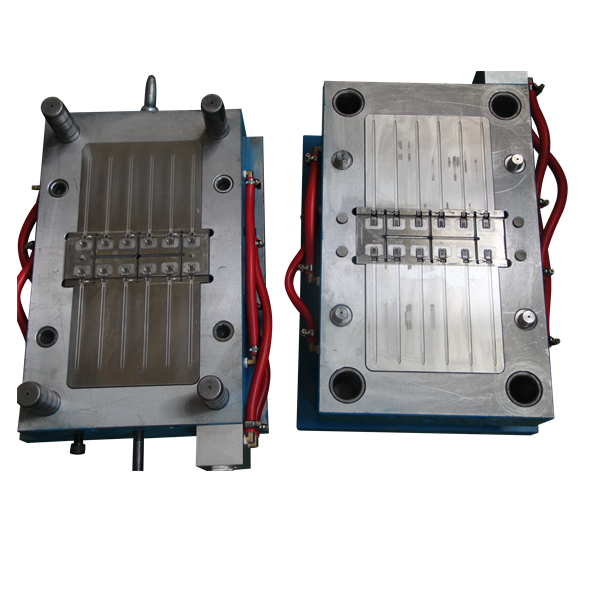

We dedicated to offer our customers an entire solution for produce Cable Ties. Export more than 250sets Cable ties mould every year. We can offer you the high quality Cable Ties Mould/Special Injection Machine for cable ties/Raw material/technical support and advice for making cable ties.
We have Tension Tester to text the tension of the cable ties to make sure every mould meets your requirements.
